SP3403 8MP Ultra-wide Dynamic Dual-board Camera Module

Category
Share:

Product Description

  • 1/1.2″ 8-megapixel CMOS sensor
  • Supports H.265+, H.265, H.264 encoding
  • Supports image flip, backlight compensation, strong light suppression, 3D digital noise reduction, fog penetration, digital wide dynamic
  • Supports standard ONVIF, GB28181, RTMP, HK, DH and other private protocols
  • Provides SDK development kit, supports secondary development, supports CGI, HTTP, WEBSOCK protocol docking
  • 8GB memory, 16GB EMMC storage
  • 8T computing power
  • Supports Google kernel browser plug-in-free
  • Supports up to 4K 60fps
  • Supports AIISP image enhancement, enhanced low noise effect
  • Supports 140BD ultra-wide dynamic
  • Supports UVC

    General
    CPU SS928V100(3403)
    Flash 8GB + 16GB( EMMC)
    Computing power 8T
    Image Sensor 800W 1/1.2 IMX585 ultra-wide dynamic CMOS sensor, color: 0.0001Lux@F1.2, monochrome: 0.0001Lux@F1.2
    Watchdog Hardware watchdog
    Wide Dynamic Range 120 dB
    Image Parameters
    Main stream frame rate resolution 60 fps@(3840  ×  2160 ,2880  ×  1620 ,2560×  1440 ,1920×  1080)
    Sub-stream frame rate resolution 60 fps@(704×576 ,640 ×480)
    Video compression standard H.265+/H.265/H.264
    Frame rate enhancement maximum support 4K@60FPS
    Video compression bitrate 512 Kbps~32 Mbps
    Character & watermark overlay Support
    Shutter 1/12 sec to 1/100000 sec
    Noise Reduction 3D/2D noise reduction
    Wide Dynamic Range Supports digital WDR
    Auto iris Supports DC IRIS auto iris
    Image function Support backlight compensation, strong light suppression, fog penetration, anti-flicker, lens correction, mirroring, flipping, gain etc.
    Audio
    Audio interface 1 input, supports microphone or pickup input; 1 output, supports connecting headphones or amplifier
    Audio compression standard G711U / G711A  / AAC-LC
    Network
    Number of channels 8 channels (maximum)


    Network Protocol

    Supports CGI、HTTPHTTPS、GB28181、SIP、RTMP、TCP/IP、UDP、RTP、FTP、RTCP、RTSP、 NTP、DHCP、DNS、DDNS、SNMP、SSL/TLS、WebSocket, and supports standard protocols such as ONVIF
    Browser Plugin preview :IE10 ,IE11

    Plugin-free preview :Edge ,Chrome ,Firefox etc.

    Other interface
    Network 1xRJ45 ,10M/100M adaptive
    Audio interface 1 input, supports microphone or pickup input; 1 output, supports connecting headphones or amplifier
    USB Port USB2.0 +USB3.0( (5V power supply), supports expansion of 4G/WiFi/UVC
    General parameters

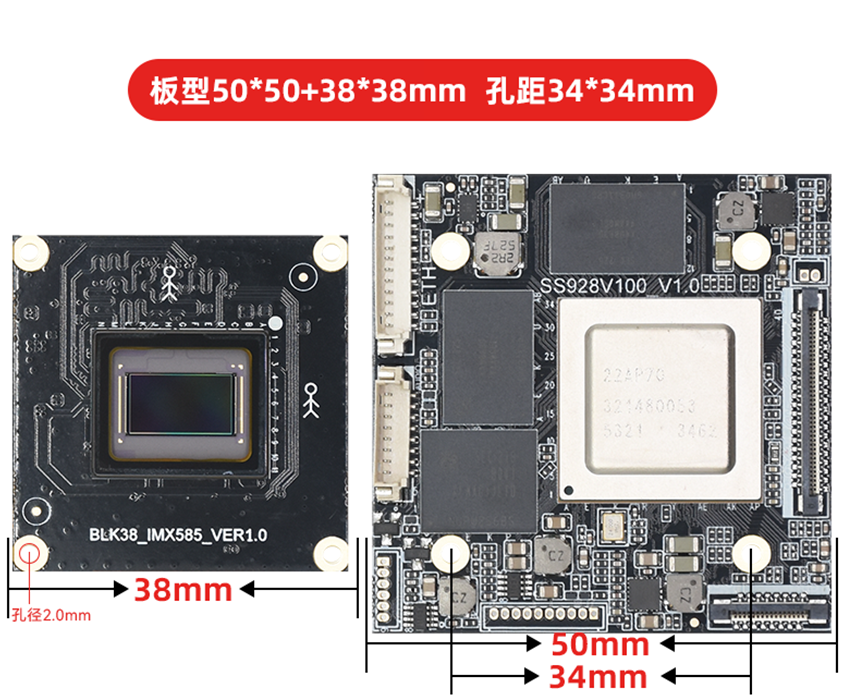

    Dimensions 50×50× 10.8mm ,38×38× 10.8mm ,50 board+38 board dual board structure
    Weight 20 g
    Operating temperature -20℃ ~ +60℃
    Power supply and consumption DC12V input, 6W (MAX) power consumption (60 frames power is 6.5w)
