SP263L 2MP Single board Camera Module

Category AI Camera Module

1/2.8″ 2-megapixel CMOS sensor
Supports H.265+, H.265, H.264 encoding
Supports mirroring, flipping, backlight compensation, strong light suppression, 3D digital noise reduction, fog penetration, digital wide dynamic
Supports infrared/full color/dual light mode, dual PWM dimming
Supports standard ONVIF, GB28181, HIK, DH and other private protocols
Provides SDK development kit, supports secondary development, supports CGI, HTTP, WEBSOCK protocol docking
Intelligent functions: motion detection, regional intrusion, intelligent PTZ, off-duty alarm
Supports Google kernel browser plug-in-free

Supports UVC

General
CPU	Hi3516CV610, ARM Cortex-A7 MP2@950MHz dual-core
Image Sensor	200W 1/2.8 GC2063CMOS sensor, color: 0.001Lux@F1.2, monochrome: 0.001Lux@F1.2
Watchdog	System watchdog
Wide Dynamic Range	80 dB
Image Parameters
Main stream frame rate resolution	30 fps@（1920 × 1080 ，1280 x 960 ，1280 × 720）
Sub-stream frame rate resolution	30 fps@（704× 576 ，640×480）
Video compression standard	H.265+/H.265/H.264
Video compression bitrate	512 Kbps~10 Mbps
White balance	Auto/Manual/One-shot white balance
Shutter	1/12 sec to 1/100000 sec
Noise Reduction	3D/2D noise reduction
Wide Dynamic Range	Supports digital WDR
Image function	Support backlight compensation, strong light suppression, fog penetration, anti-flicker, lens correction, mirroring, flipping, gain etc.
Audio
Audio interface	1 input, supports microphone or pickup input; 1 output, supports connecting headphones or amplifier
Audio compression standard	G711U / G711A / AAC-LC
Network
Number of channels	6 channels (maximum)
Network Protocol	Supports CGI、HTTP、HTTPS、GB28181、SIP、RTMP、TCP/IP、UDP、RTP、FTP、RTCP、 RTSP、NTP、DHCP、DNS、DDNS、SNMP、SSL/TLS、WebSocket, and supports standard protocols such as ONVIF
Browser	Plugin preview ：IE10 ，IE11 Plugin-free preview ：Edge ，Chrome ，Firefox etc.
辅助接口
Network	1xRJ45 ，10M/100M adaptive
Light board control	Supports photosensitive detection input, supports PWM dimming
Light board control	Supports photosensitive detection input, supports PWM dimming
USB Port	1xUSB2.0 (5V power supply), supports expansion of 4G/Wi Fi (dual band)/storage functions/UVC
General parameters

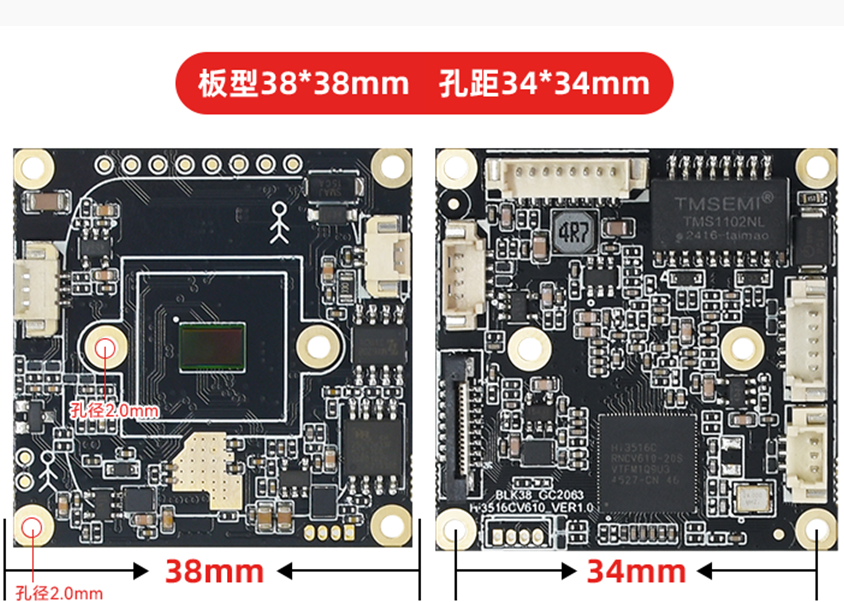

Dimensions	38×38× 10.8mm , 38 single board structure
Weight	10 g
Operating temperature	-20℃ ~ +60℃
Power supply and consumption	DC12V input, 1.2W power consumption
