SP385 2MP dual board Camera Module

Category AI Camera Module

1/1.8″ 2-megapixel CMOS sensor
Supports H.265+, H.265, H.264 encoding
Supports mirroring, flipping, backlight compensation, strong light suppression, 3D digital noise reduction, fog penetration, digital wide dynamic
Supports infrared/full color/dual light mode, PWM dimming
Supports standard ONVIF, GB28181, HIK, DH and other private protocols
Supports electric zoom (optional), automatic aperture (optional)
Provides SDK development package, supports secondary development, supports CGI, HTTP, WEBSOCK protocol docking
Supports AIISP image enhancement, enhances low noise effect
Supports Google kernel browser plug-in-free

Supports maximum frame rate 60FPS

General
CPU	Hi3516DV500, ARM Cortex A55@850MHz dual core
DDR(Memory)	8Gbit LP DDR4
Flash	1Gbit SPl Nor Flash (2Gbit batch optional)
Image Sensor	200W 1/1.8 IMX385 black light CMOS sensor, color: 0.0001Lux@F1.0, black and white: 0.0001Lux@F1.0
Watchdog	Hardware watchdog
Wide Dynamic Range	120 dB
Image Parameters
Main stream frame rate resolution	30 fps@（1920× 1080 ，1280×720）
Sub-stream frame rate resolution	30 fps@（704× 576 ，640×480）
Triple-stream frame rate resolution	30 fps@（704× 576 ，640×480）
Frame rate enhancement	maximum support 1080P@60FPS
Video compression standard	H.265+/H.265/H.264
Video compression bitrate	512 Kbps~32 Mbps
White balance	Auto/Manual/One-shot white balance
Shutter	1/12 sec to 1/100000 sec
Noise Reduction	3D/2D noise reduction
Wide Dynamic Range	Supports combined frame WDR/digital WDR
Auto iris	Supports DC IRIS auto iris
AIISP	Supports AISP image enhancement
Image function	Support backlight compensation, strong light suppression, fog penetration, anti-flicker, lens correction, mirroring, flipping, gain etc.
Audio
Audio interface	1 input, supports microphone or pickup input; 1 output, supports connecting headphones or amplifier
Audio compression standard	G711U / G711A / AAC-LC
Network
Number of channels	12 channels (maximum)
Network Protocol	Supports CGI, HTTP, HTTPS, GB28181, SIP, RTMP, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, and supports standard protocols such as ONVIF
Browser	Plugin preview ：IE10 ，IE11 Plugin-free preview ：Edge ，Chrome ，Firefox etc.

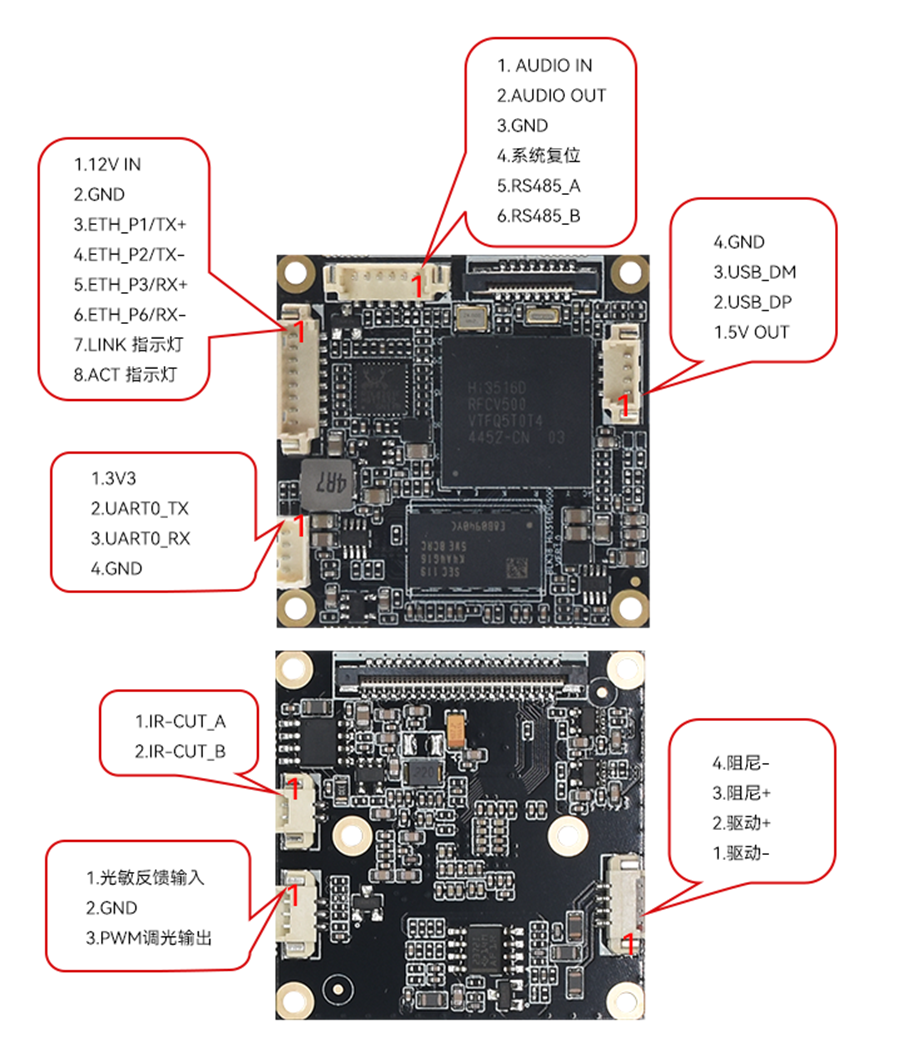

Other interface
Network	1xRJ45 ，10M/100M adaptive
Audio	1 input, supports microphone or pickup input; 1 output, supports connecting headphones or amplifiers
Light board control	Supports photosensitive detection input, supports PWM dimming
USB Port	1xUSB2.0 (5V power supply), supports expansion of 4G/WiFi (dual band)/storage functions
General parameters

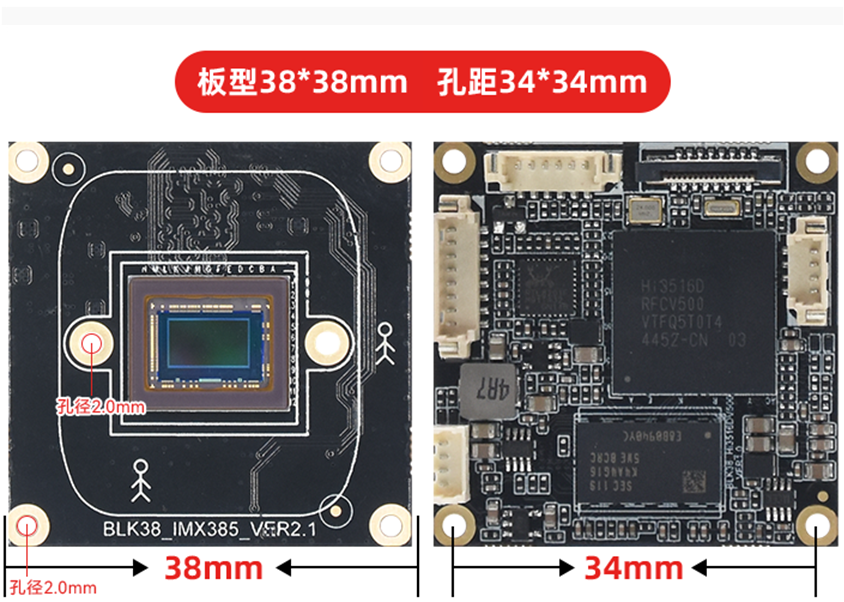

Dimensions	38×38× 10.8mm , 38 board dual board structure
Weight	10 g
Operating temperature	-20℃ ~ +60℃
Power supply and consumption	DC12Vinput, 4W power consumption
